CSPU SUEZ.Standard packaging

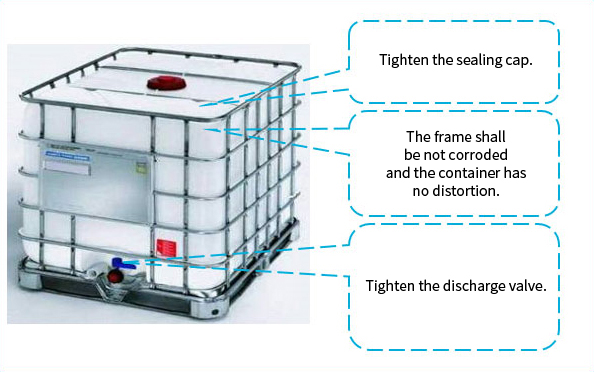

Common Packaging - IBC Ton drum

IBC ton drum: store liquid waste with good fluidity. It is not suitable for storing liquid waste which has low flash point (<65 ℃), is easy to polymerize or contains solid particles; and it is not suitable for storing solid waste.

Opening ton drum: store ordinary solid waste. Same sized lining bags must be used for storage of waste of high viscosity.

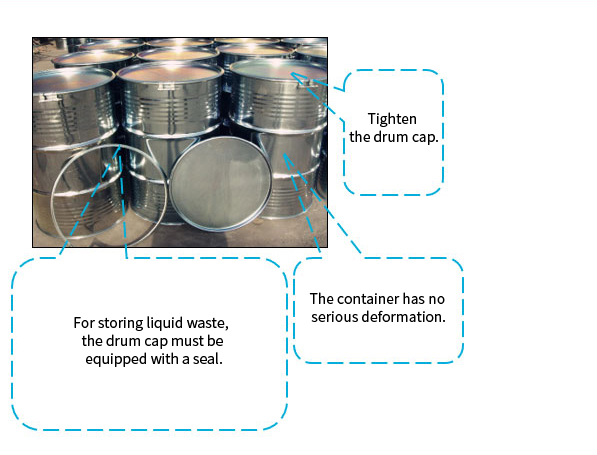

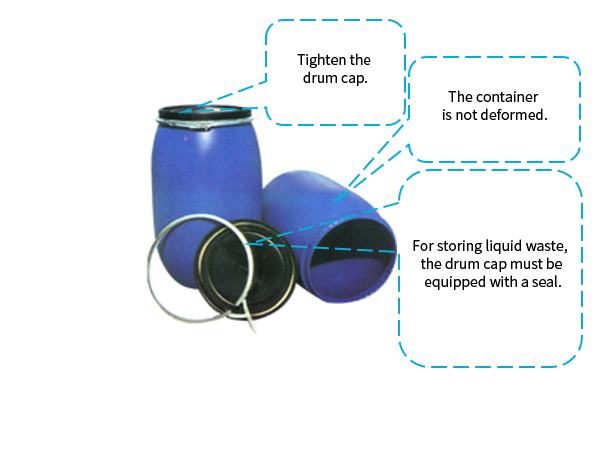

Common Packaging - Large Opening Drum (Iron / Plastic)

Large opening drum: It can store small-volume solid waste and liquid waste (flash point> 65 ℃);

same sized lining bags must be used for storage of waste of high viscosity.

Note: It is not recommended to store liquid waste with good fluidity (such as waste water)

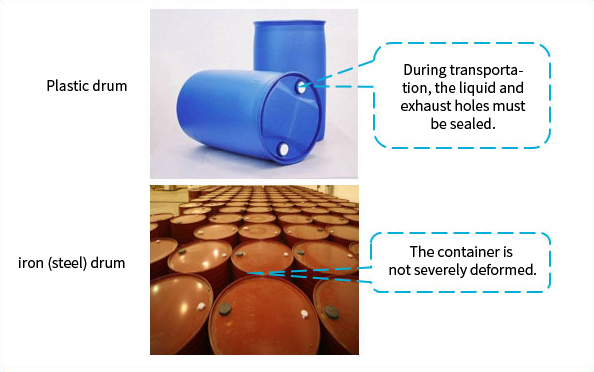

Common Packaging - Small Opening Drum (Iron / Plastic)

Small opening drum: liquid waste

Note!Plastic drums are not suitable for storing low flash point (<65 ° C) liquid waste

It’s not recommended to store easily-polymerizable, solid particles or viscous liquid waste

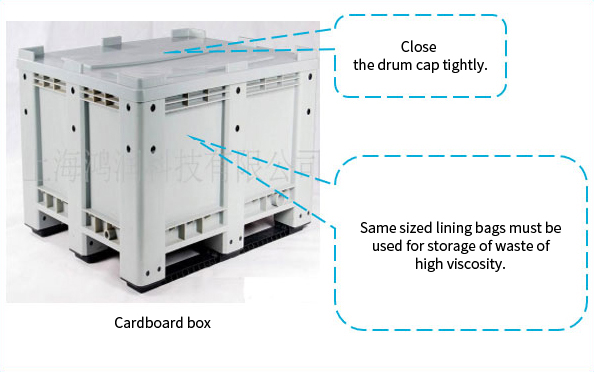

Common Packaging - Small Opening Drum (Iron / Plastic)

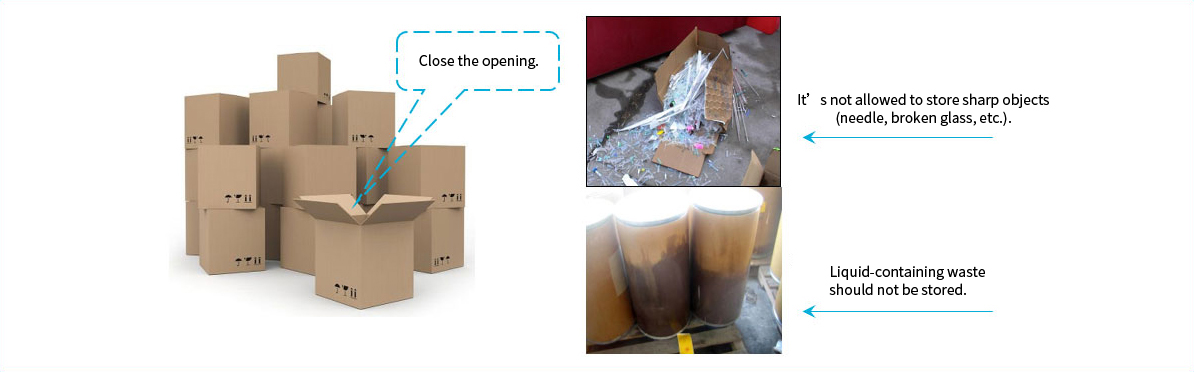

Full Open Box: Solid Waste

Note!The loading weight of a cardboard box does not exceed 200kg.

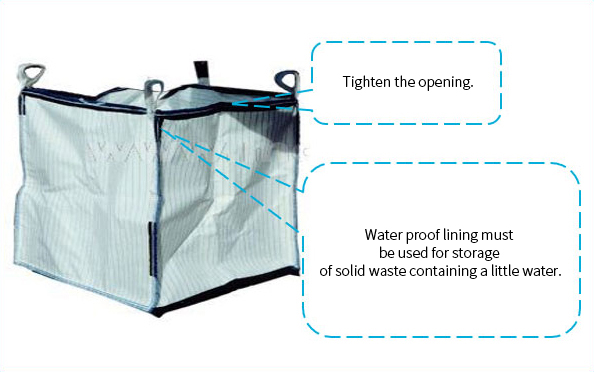

Common Packaging - Woven Bag

Woven bag (size≤1.1m * 1.1m * 1.1m): solid waste

Note! It is not recommended to store sharp solid waste (such as glass waste). Solid waste containing a small amount of liquid should use a woven lining bag.

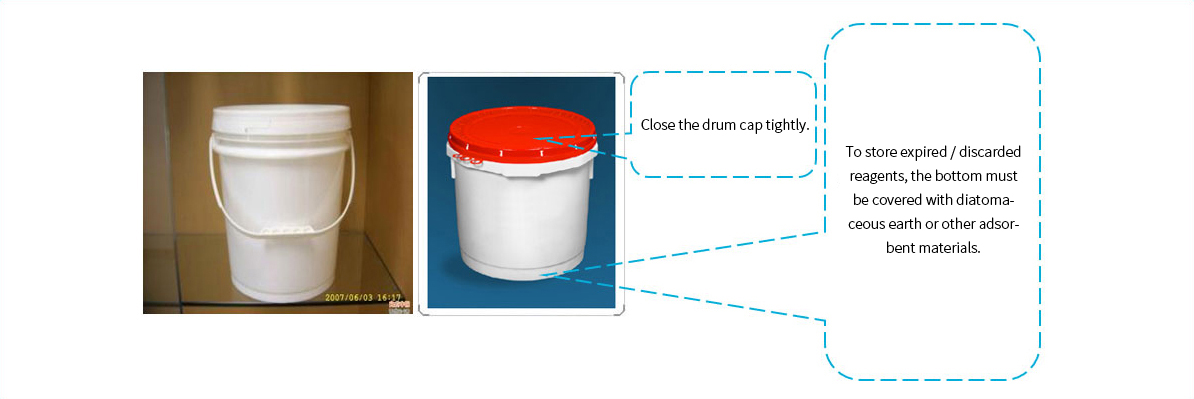

Common Packaging - Paint Drum / Opening Drum

Paint drum (≤25L) / large opening small drum (≤20L): laboratory expired / retired reagent (bottle);

Sharp objects (needle, broken glass, etc.); viscous solid waste

Note! It’s not recommended to store liquid waste

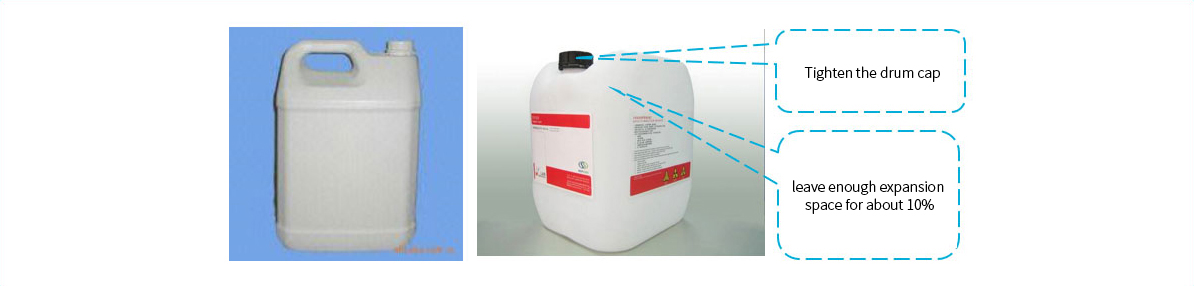

Common packaging - small opening plastic drum (≤25L)

Small opening plastic drum (≤25L): laboratory liquid waste (5L plastic drum is generally used)

Note! High-concentration halogen, acid and toxic liquid waste should be stored in containers with a volume of ≤ 5L

Common packaging - small opening plastic drum (≤25L)

Small opening plastic drum (≤25L): laboratory liquid waste (5L plastic drum is generally used)

Note! High-concentration halogen, acid and toxic liquid waste should be stored in containers with a volume of ≤ 5L

Packaging identification label

Sticky labels:

Hanging labels:

1. Setting location

Identification tags include sticky type and hanging type. Sticky type hazardous waste labels are affixed to hazardous waste storage containers and packaging materials. Hanging type hazardous waste labels are suitable to be attached to hazardous waste storage containers and packaging materials that are not easy to stick firmly or inconvenient to stick but relatively easy to hang.

2. Specifications

(1) Size: sticky type label: 20cm × 20cm, hanging type label: 10cm × 10cm.

(2) Color and font: The background color is eye-catching orange, the text color is black, and the font is bold.

(3) Materials: Sticky type labels are self-adhesive prints, and hanging labels are printed with waterproof plastic bags or plastic seals.

3. Fill in the content

(1) Main ingredients: refer to the names of the main hazardous substances contained in hazardous waste.

(2) Chemical name: Refer to the name of the hazardous waste and corresponding eight-digit code, which should be consistent with the names of the hazardous waste in the enterprise's environmental assessment documents, management plan, and monthly declaration.

(3) Dangerous situation: refer to the hazardous waste categories listed in Appendix A of the Standard for Pollution Control of Hazardous Waste Storage (GB18597-2001), including explosive, toxic, flammable, harmful, combustion-supporting, corrosive, irritating and asbestos.

(4) Safety measures: Fill in safety protection measures according to dangerous situations, so as to avoid accidents.

(5) Danger category: According to the dangerous situation, mark "√" in front of the text in the lower right corner of the corresponding sign.

Explanation:

Corresponding CMYK color values of the background, text, pattern, and label colors of the bottom plate appearing in the attachment are shown in the attached table.

Attached table: Color value comparison table

Color value comparison table

Serial number
Color
Color value
Hexadecimal code
Corresponding item

1
Blue
C92 M75 Y0 K0
#0000ff
Hazardous waste information disclosure bar base plate background

2
White
C0 M0 Y0 K0
#ffffff
For text of the hazardous waste information public bar, the hazardous categories of the hazardous waste label include "toxic", "harmful", "corrosive", "irritating", "asbestos" sign backgrounds.

3
Yellow
C10 M0 Y83 K0
#ffff00
Hazardous waste storage facility warning sign background, triangle warning sign pattern background, sign background of hazard category “flammable” of hazardous waste label, vertical stationary hazardous waste storage facility warning sign post, storage facility warning sign vertical movable stand.

4
Black
C93 M88 Y89 K80
#000000
All words of warning signs on hazardous waste storage facilities, all words of hazardous waste labels, all words of hazardous category signs

5
Gray
C17 M15 Y13 K0
#dad7d7
External decoration parts of triangular warning signs on the warning signs of hazardous waste storage facilities

6
Orange
C0 M63 Y91 K0
#ff8000
Sign background of the hazardous waste label with a "flammable" hazardous category

7
Red
C0 M96 Y95 K0
#ff0000
Hazardous waste label background, sign background of "explosive" hazardous category
